U-type bellows cover
Bellows way covers · MG-BC

U-type bellows cover

U-type bellows cover.

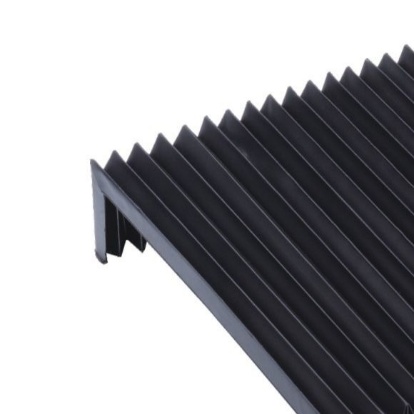

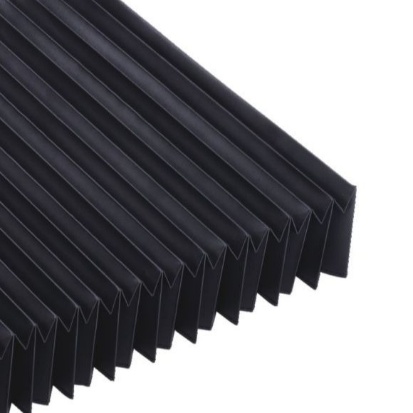

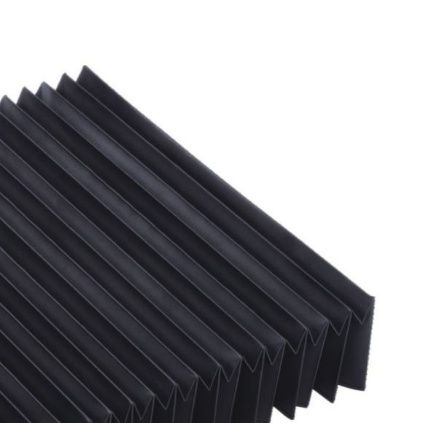

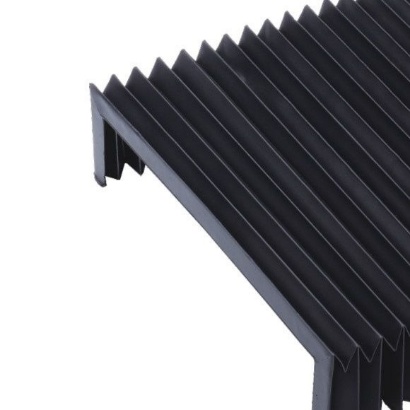

A U-type bellows way cover has a U-shaped cross-section that protects three faces of a guideway at once, blocking dust, coolant and chips during travel on CNC and grinding machines.

What is a U-shaped bellows cover?

Named for its U-shaped section, this cover wraps three sides of a drive rail on machine tools, gantry surface grinders, PCB and semiconductor equipment. It prevents dust, oil and moisture from reaching the rail, so the spindle keeps smooth movement and machining accuracy while the equipment lasts longer.

For long-stroke or high-speed axes, rollers, steel scissor supports or restraining straps can be built inside to stop the cover sagging, deforming or tearing.

Advantages

  • Oil-, water- and dust-proof, acid/alkali resistant, antistatic and UV resistant
  • Temperature, IP and cleanroom ratings (e.g. Class 1000) to specification
  • High compatibility with CNC machines, electronic instruments and semiconductor equipment
  • Fully customisable installation and compression dimensions
  • Internal supports available for long or high-speed strokes

Typical applications

  • CNC turning, milling and surface-grinding machines
  • Gantry surface grinders
  • PCB forming and drilling machines
  • Waterjet cutting and wood-carving machines
  • Semiconductor processing equipment
  • Order type
    Customised / made to drawing
Can the U-type cover be customised in size?

Yes. We design the leather material and structure to the installation space, compression/extension length and environment you provide.

Is it suitable for cleanroom environments?

Yes. We can build covers that meet cleanroom standards such as Class 1000 on request.

How do I choose the leather material?

Consider the environment (dust, oil, moisture, acids/alkalis), compression dimensions and service life. We recommend a suitable material based on your actual working conditions.

Which machines need a U-type cover?

Any sliding-rail machine at risk of dust or liquid contamination — CNC machine tools, gantry grinders, PCB equipment and semiconductor machines.

Add to enquiry Back to Bellows way covers

Rapid quote — send axis travel, dimensions, environment severity and quantity. Reply within 24–48 hours.
