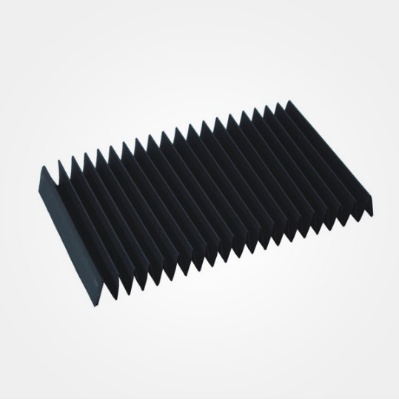

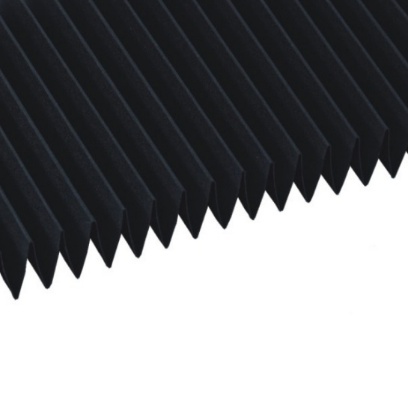

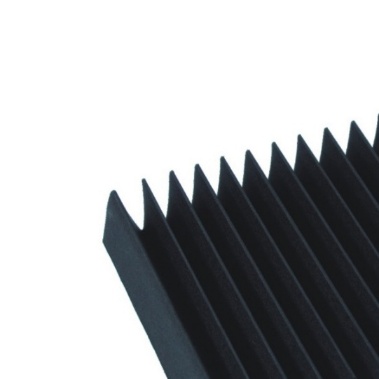

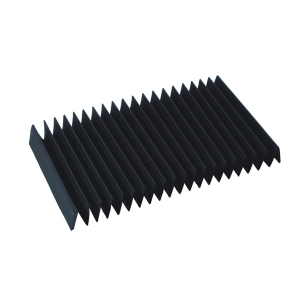

Flat type bellows cover
A flat (one-piece) bellows way cover is a folding dust cover fitted over a single machine guideway; it extends and compresses with the spindle to keep chips, oil and moisture off the track.
What is a one-piece bellows way cover?
When machine tools, laser cutters and semiconductor equipment run, the drive rails are constantly exposed to cutting dust, oil and moisture, which reduces spindle accuracy and accelerates wear. The one-piece bellows cover forms a physical barrier over the rail that extends and retracts in sync with the spindle, so the machine keeps smooth, high-precision movement and a longer service life.
Compression size, extension length and cloth material are all customised to the equipment and its operating environment.
Material and structure
- Main leather: rubber or plastic-coated fabric, chosen by temperature, acid/alkali and cleanroom rating
- Front and rear flanges: black iron or stainless steel sheet, securing the cover and adding rigidity
- Internal accessories: added to the environment for stability and durability
- Fully customised to compression size and use case
Protective advantages
- Oil-, water- and dust-resistant against processing contamination
- Acid/alkali resistant and antistatic for semiconductor and electronics environments
- UV resistant to delay material ageing
- Customisable temperature and cleanroom ratings
- Protects precision and extends guideway life
- Order typeCustomised / made to drawing
Can the one-piece cover be fully customised?
Yes. We build to the installation dimensions, compression/extension length and environment you provide, and recommend the most suitable leather material.
Does the cloth material affect protection?
Yes. Materials differ in temperature, acid/alkali, antistatic and cleanroom performance, so the right one is chosen for your actual environment (for example a semiconductor cleanroom or a high-temperature line).
How often should it be replaced?
Service life depends on the material, environment and operating frequency. We recommend materials and specifications that extend the replacement cycle and cut maintenance cost.
Which equipment is it suitable for?
Machine tools, CNC equipment, laser cutters, measuring instruments and electronic or semiconductor equipment — any precision, rail-driven machine needing dust and oil protection.
Rapid quote — send axis travel, dimensions, environment severity and quantity. Reply within 24–48 hours.
